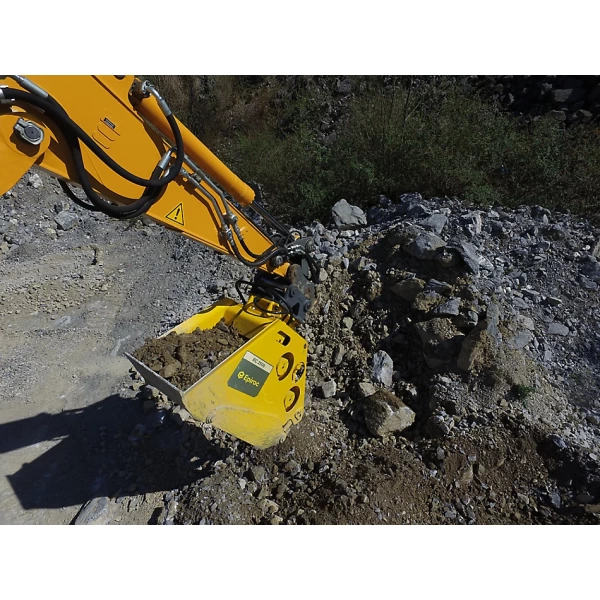

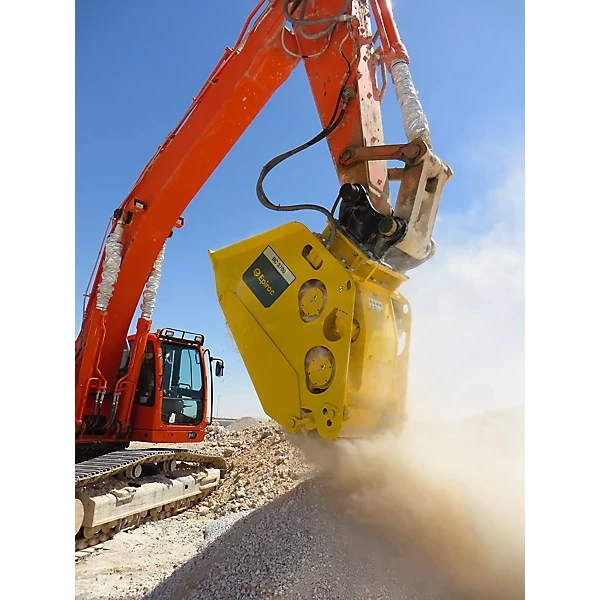

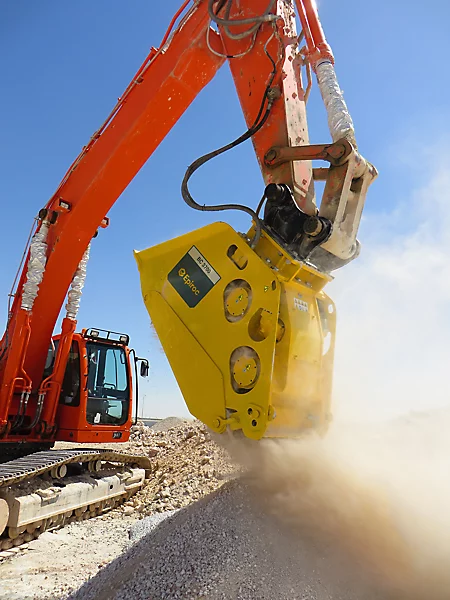

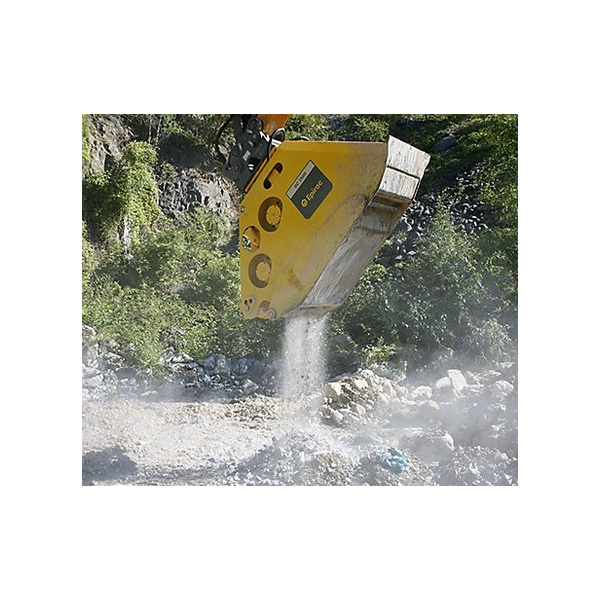

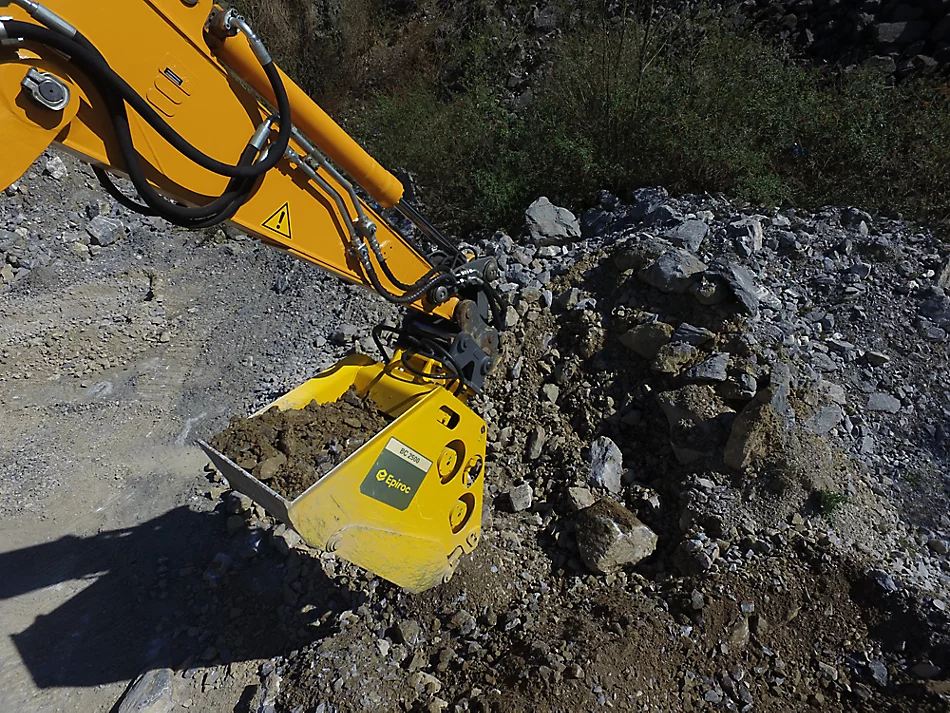

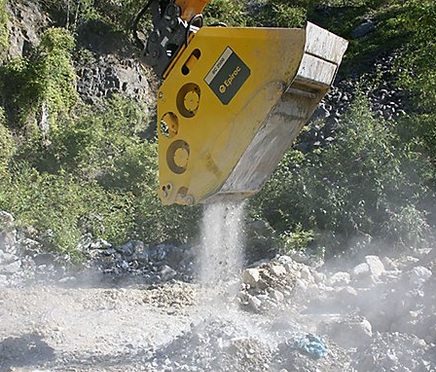

Excavator rock crusher buckets for carriers of 18-54 tons
- Up to 30% higher output
- Automatic anti-lock mechanism
- Reversible running direction
- Quick granulometry adjustment
- Sophisticated drive system
- Compact design
|
Model
|
|
BC 2100 ³
|
BC 2500 ³
|
BC 3700 ³
|
BC 5300 ³
|
|
Carrier weight class ¹
|
t
|
18-28
|
22-30
|
28-38
|
35-54
|
|
Service weight ²
|
kg
|
2.250
|
2.870
|
4.290
|
6.050
|
|
Length
|
mm
|
2.046
|
2.465
|
2.575
|
2.829
|
|
Height
|
mm
|
1.311
|
1.500
|
1.600
|
1.700
|
|
Width external
|
mm
|
930
|
900
|
1076
|
1285
|
|
Width internal
|
mm
|
730
|
730
|
900
|
1100
|
|
Crushing size
|
mm
|
20 / 40 / 60 / 90
|
20 / 45 / 70 / 95 / 125 / 150
|
|
Load capacity
|
m³
|
0,5
|
0,8
|
1
|
1,2
|
|
Operating pressure
|
bar
|
250
|
250
|
250
|
320
|
|
Max. leakage oil pressure
|
bar
|
4
|
4
|
4
|
4
|
|
Oil flow
|
l/min
|
140-160
|
160-180
|
180-200
|
300
|
|
¹ Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrer manufacturer prior to attachment. ² Attachment with average-sized adapter plate. ³ Drainage line required
|
