Excavator grapple attachments - Demolition and sorting grabs are universal tools for demolition, sorting and loading all kind of materials. The name Multi Grapple is quite a good description for them. The basic structure is quite simple and similar for all brands: a rigid main body with two moving jaws mounted on both ends of the frame. The jaws are powered by one or two hydraulic cylinders and they are connected together with a steel bar so that they move simultaneously. For heavy applications these hydraulic grapples are always equipped with a powerful hydraulic rotator but for light loading and sorting jobs a tilt rotator can replace it.

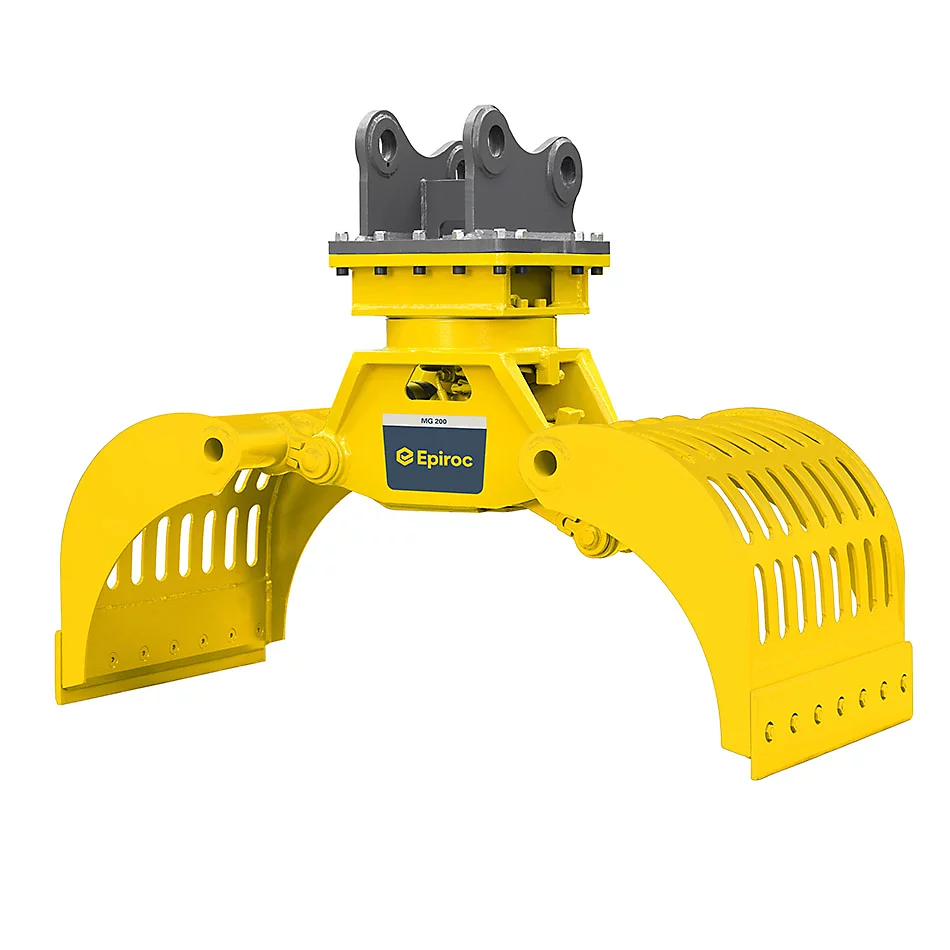

Excavator grapple for carriers of 1,2 - 3 tons (2,646-6,614 lb), used in sorting and loading applications
-
Carrier weight class ¹: 1.2 t - 3 t
-
Service weight (rotation version) ²: 175 kg
-
Loading volumen: 0.05 m³
-
Oil flow: 15 l/min - 25 l/min
-
Product weight (rotating version): 155 kg
-
Jaw opening, max: 900 mm
-
Grapple width: 450 mm
-
Max. closing force: 1.5 t
-
Operating pressure: 300 bar
-
Oil flow, rotation: 5 l/min - 10 l/min
