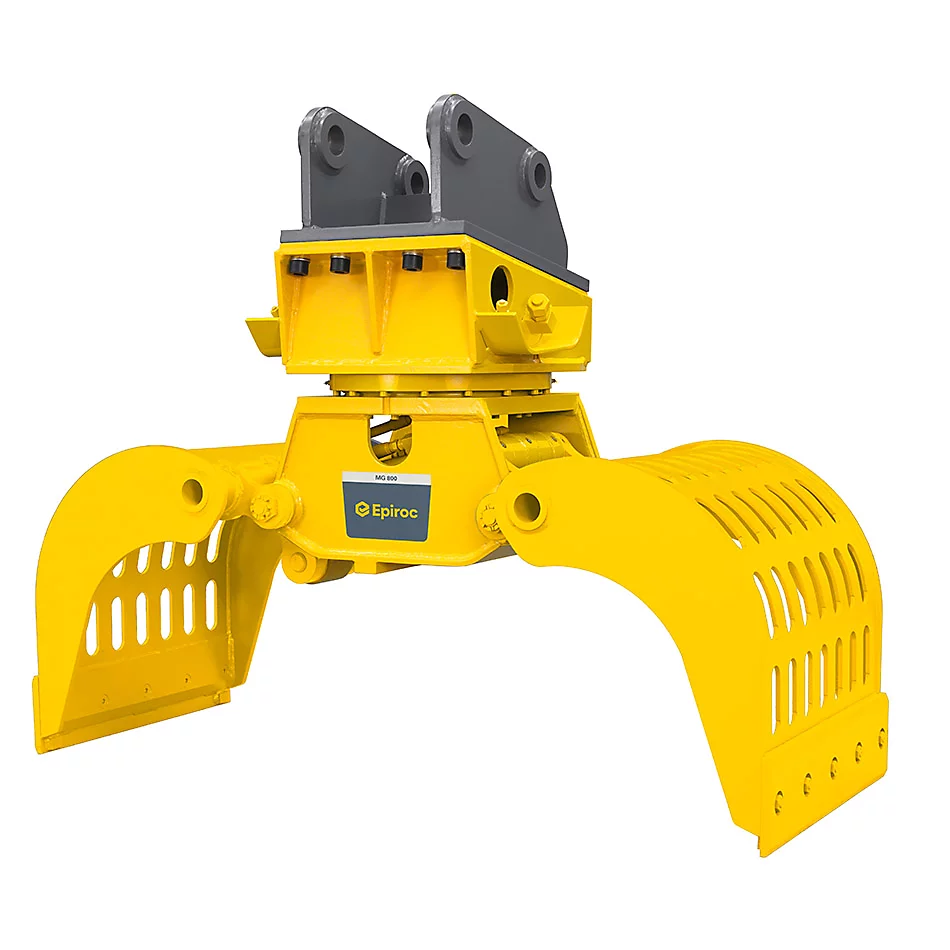

MG 800

Excavator grapple attachments - Demolition and sorting grabs are universal tools for demolition, sorting and loading all kind of materials. The name Multi Grapple is quite a good description for them. The basic structure is quite simple and similar for all brands: a rigid main body with two moving jaws  mounted on both ends of the frame. The jaws are powered by one or two hydraulic cylinders and they are connected together with a steel bar so that they move simultaneously. For heavy applications these hydraulic grapples are always equipped with a powerful hydraulic rotator but for light loading and sorting jobs a tilt rotator can replace it.

Excavator grapple for carriers of 10 - 16 tons (22,046-35,274 lb), used in sorting and loading applications
  • Carrier weight class ¹: 10 t - 16 t
  • Service weight (rotation version) ²: 825 kg
  • Loading volumen: 0.35 m³
  • Oil flow: 70 l/min - 100 l/min
  • Product weight (rotating version): 752 kg
  • Jaw opening, max: 1,791 mm
  • Grapple width: 800 mm
  • Max. closing force: 3.8 t
  • Operating pressure: 350 bar
  • Oil flow, rotation: 20 l/min - 25 l/min
