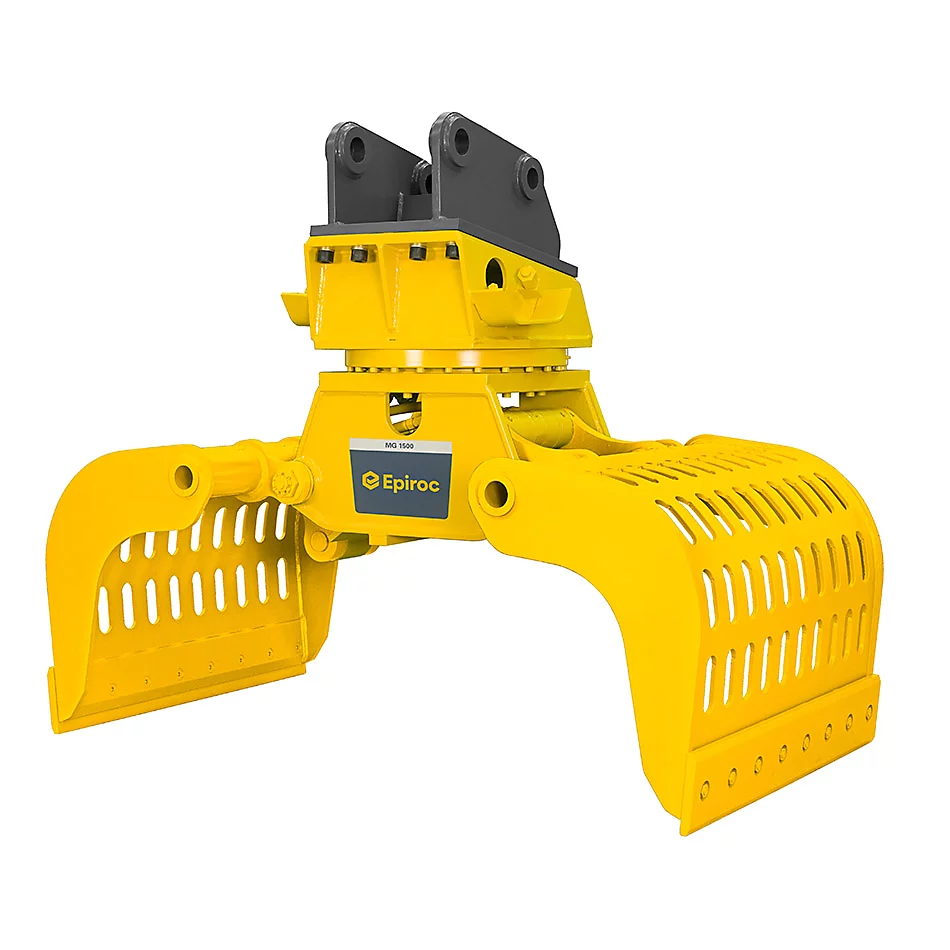

MG 1500

Excavator grapple attachments - Demolition and sorting grabs are universal tools for demolition, sorting and loading all kind of materials. The name Multi Grapple is quite a good description for them. The basic structure is quite simple and similar for all brands: a rigid main body with two moving jaws  mounted on both ends of the frame. The jaws are powered by one or two hydraulic cylinders and they are connected together with a steel bar so that they move simultaneously. For heavy applications these hydraulic grapples are always equipped with a powerful hydraulic rotator but for light loading and sorting jobs a tilt rotator can replace it.

Excavator grapple for carriers of 17 - 28 tons (37,479-61,729 lb), used in sorting and loading applications
  • Carrier weight class ¹: 16 t - 24 t
  • Service weight (rotation version) ²: 1,700 kg
  • Loading volumen: 0.73 m³
  • Oil flow: 120 l/min - 170 l/min
  • Product weight (rotating version): 1,486 kg
  • Jaw opening, max: 2,100 mm
  • Grapple width: 1,020 mm
  • Max. closing force: 6.8 t
  • Operating pressure: 350 bar
  • Oil flow, rotation: 30 l/min - 35 l/min
