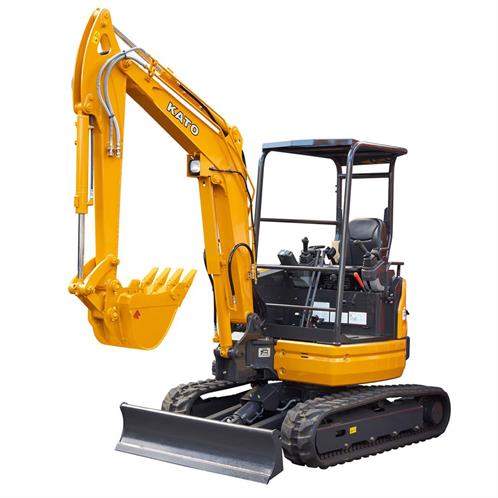

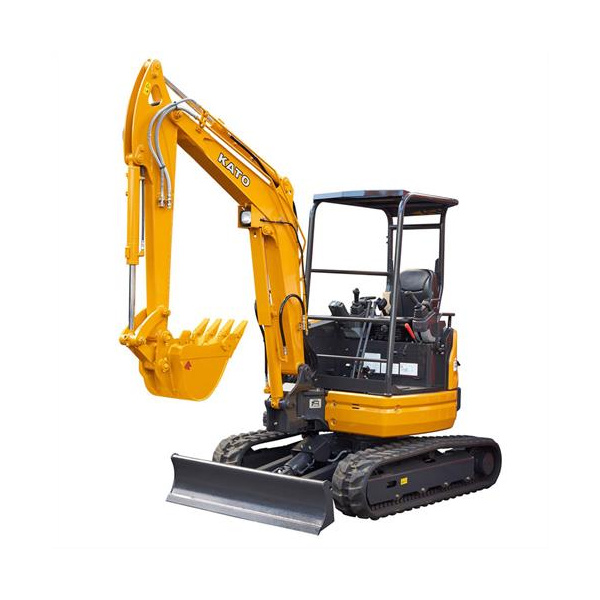

3.0 Ton HD30V5 KATO Mini Excavator

Thanks to the zero tail swing of this 3 Ton machine it is possible to perform digging and loading operations in total safety near to walls or other tight spaces. Powered by the Yanmar 3TNV88 Diesel engine and fitted standard with an enclosed RPS Cabin (Option 4 post ROPS canopy)this 30V4 unit leads the way in its class.

The driving position is very comfortable thanks to the adjustable seat with a suspension/spring adjustment according to weight, horizontal adjustment according to driver height, and even the backrest is adjustable.

Ideal for civil construction, drainage work, landscaping and the Hire Industry. Multiple bucket options.


  • Engine Yanmar 3TNV88
  • Fuel Tank Capacity 42L
  • Swinging Boom (L/R) 80 degree/50 degree
  • Max Digging Depth 3000 mm
  • Max Digging Radius 5190 mm
  • Max Digging Height 4720 mm
  • Max Dumping Height 3390 mm
  • Three pump hydraulic system
  • Corrosion-free resin fuel tank
  • Cabin as standard (4 posts ROPS canopy option)
  • Easy maintenance with wide opening engine covers
  • Rubber or steel tracks
  • Removable counterweight


Operating Weight: 4 Post (Cabin) 3105 (3255) kg
Bucket Digging Force 29.1kN
Front Turning Radius 2110mm / At right boom swing 1820mm
Track Width 1550mm
Download Brochure HD30V5 Brochure
