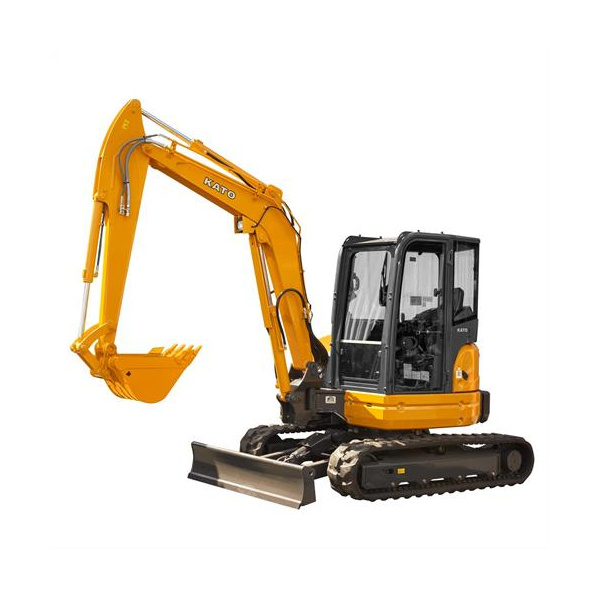

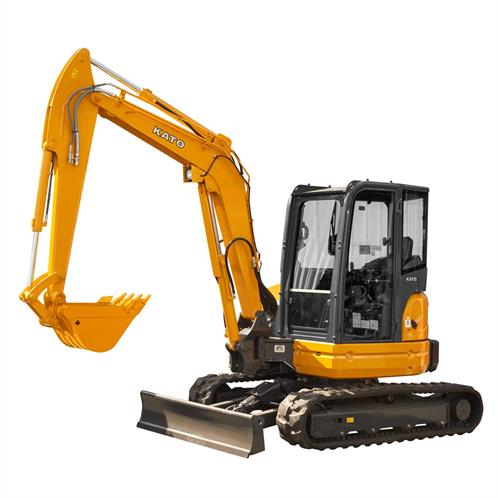

5.6 Ton HD60V5 KATO Mini Excavator

Thanks to the reduced tail swing of this 5.6 Ton machine it is possible to perform digging and loading operations in total safety near to walls or other tight spaces. Powered by the Kubota V2403-DI Diesel engine and fitted standard with an enclosed ROPS Cabin (Option 4 post ROPS canopy )this 60V5 unit leads the way in its class.

The driving position is very comfortable thanks to the adjustable seat with a suspension/spring adjustment according to weight, horizontal adjustment according to driver height, and even the backrest is adjustable.

Ideal for civil construction, drainage work, landscaping and the Hire Industry. Multiple bucket options.


  • Engine Kubota V2403-DI
  • Fuel Tank Capacity 66L
  • Swinging Boom (L/R) 80 degree/50 degree
  • Max Digging Depth 4040 mm
  • Max Digging Radius 6440 mm
  • Max Digging Height 5860 mm
  • Max Dumping Height 4200 mm
  • Max Vertical Dig Depth 3220 mm
  • Three pump hydraulic system
  • Corrosion-free resin fuel tank
  • Cabin as standard (4 posts ROPS canopy option)
  • Easy maintenance with wide opening engine covers
  • Rubber or steel tracks


Operating Weight: 4 Post (Cabin) 5425 (5575) kg
Bucket Digging Force 41.2kN
Front Turning Radius 2470mm / At right boom swing 2130mm
Track Width 1990mm
Download Brochure HD60V5 Brochure
