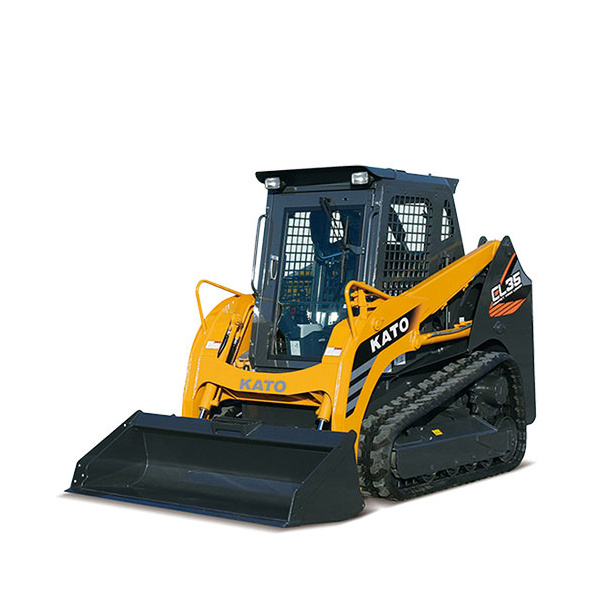

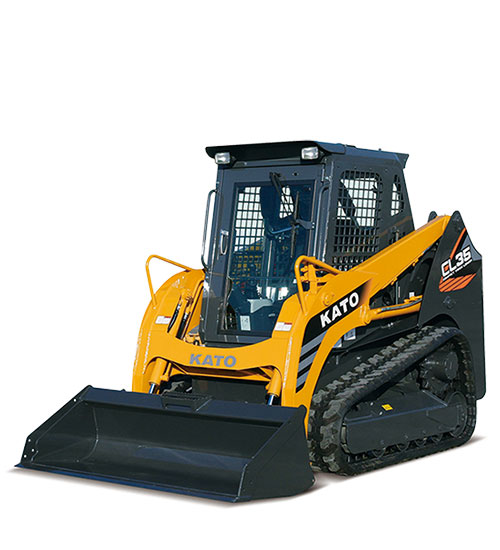

Based on a rock-solid concept and heavy-duty construction, the CL35 Track Loader is designed to show off its high usability and functionality even in adverse working conditions. With a proven track record in heavy equipment, IHI’s hydraulic system accurately responds to the will of the operator. The CL35 offers comfort, ease of use, eco-friendliness, durability and reliability, as well as easy maintenance. Developed through the pursuit of what a track loader should do and what it should be, the CL35 is ready to revolutionize the way you work, wherever in the world you are.


Operability & Comfortability

  • The CL35 features  comfortable operators seat with joystick control, increasing productivity.

  • Air conditioned cabin

  • Wide foot space

  • Auxiliary piping control switches are equipped on the left joystick lever


  • Our Operator-friendly design enables fuss-free maintenance and easy cleaning

  • The ROPS can be tilted for easy access to the Engine and other service ports

  • Side by side Radiator and Oil cooler enable easy cleaning

  • 2 Split Sprocket - this sprocket can be replaced without removing the rubber crawler

  • Large capacity fuel tank

Safety Features
  • Safety equipment protects operator from dangerous situations - Safety bar, Lift arm support, Hammer for emergency evacuation (located behind the operators seat)

Ecological Features

  • Engine Throttle Control - one touch decelerating function gives less fuel consumption, optimising engine output

  • Environmentally friendly Engine US EPA Tier 4 Final compliant


  • 62hp Kubota V2403-CR Engine

  • 3540kg - Operating weight

  • 2135mm - Overall height

  • 3500mm - Overall length (with bucket)

  • Fuel tank capacity - 91L

Download Brochure CL35 Brochure
